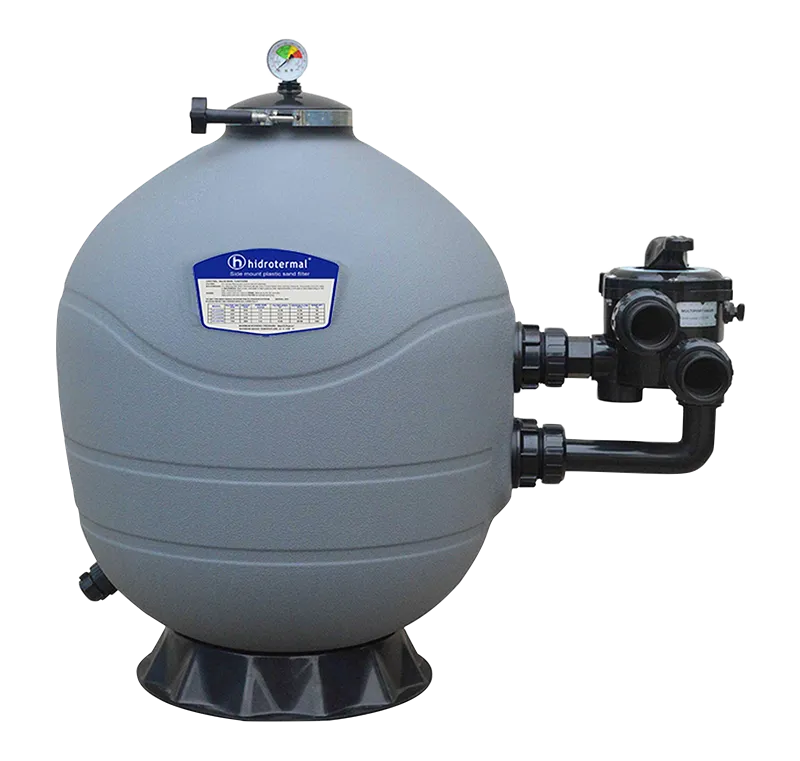

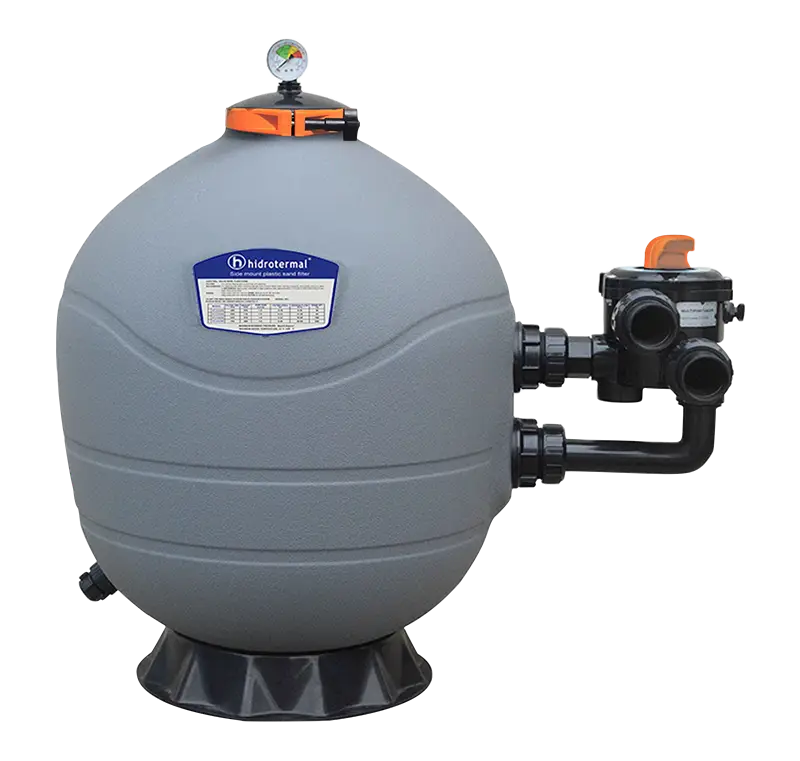

HT-BFS
Blow-Molded HDPE Sand Filter
Hidrotermal filters are mold blown into one piece of high density polyethylene, safe for the user and surrounding environments. All are equipped with a 6-way multiport valve and a 360º clamp lock, allowing trouble free installation and maintenance. The High Density Polyethylene formula material we use is both UV-resistant and anti-corrosive making our filters reliable to work in direct sunlight & high PH environments for years of prolonged operation.
| MODEL | FILTER AREA | RATED FLOW | SAND WEIGHT (KG) | Tank Volume (m3) | Valve Volume (m3) | Dimensions (mm) | Connection Size | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3/H | GPM | A | B | C | D | M | ||||||
| HT-BFS20 | 0.19m2 | 9.5 | 41.83 | 90kg | 0.16m3 | 0.02m3 | 736 | 366 | 241 | 500 | 236 | 1.5" - 48.5/50mm |
| HT-BFS24 | 0.27m2 | 13.5 | 59.44 | 140kg | 0.26m3 | 0.02m3 | 830 | 435 | 310 | 600 | 285 | 1.5" - 48.5/50mm |
| HT-BFS26 | 0.32m2 | 16.0 | 70.45 | 170kg | 0.34m3 | 0.02m3 | 887 | 421 | 296 | 650 | 319 | 1.5" - 48.5/50mm |
caracteristicas
-
Versatile for pools, spas, fountains, waterscapes, and aquariums.
-
Made with anti-corrosive, environmentally friendly HDPE.
-
Durable thermal plastic tank for all weather conditions.
-
Compact, space-saving design.
-

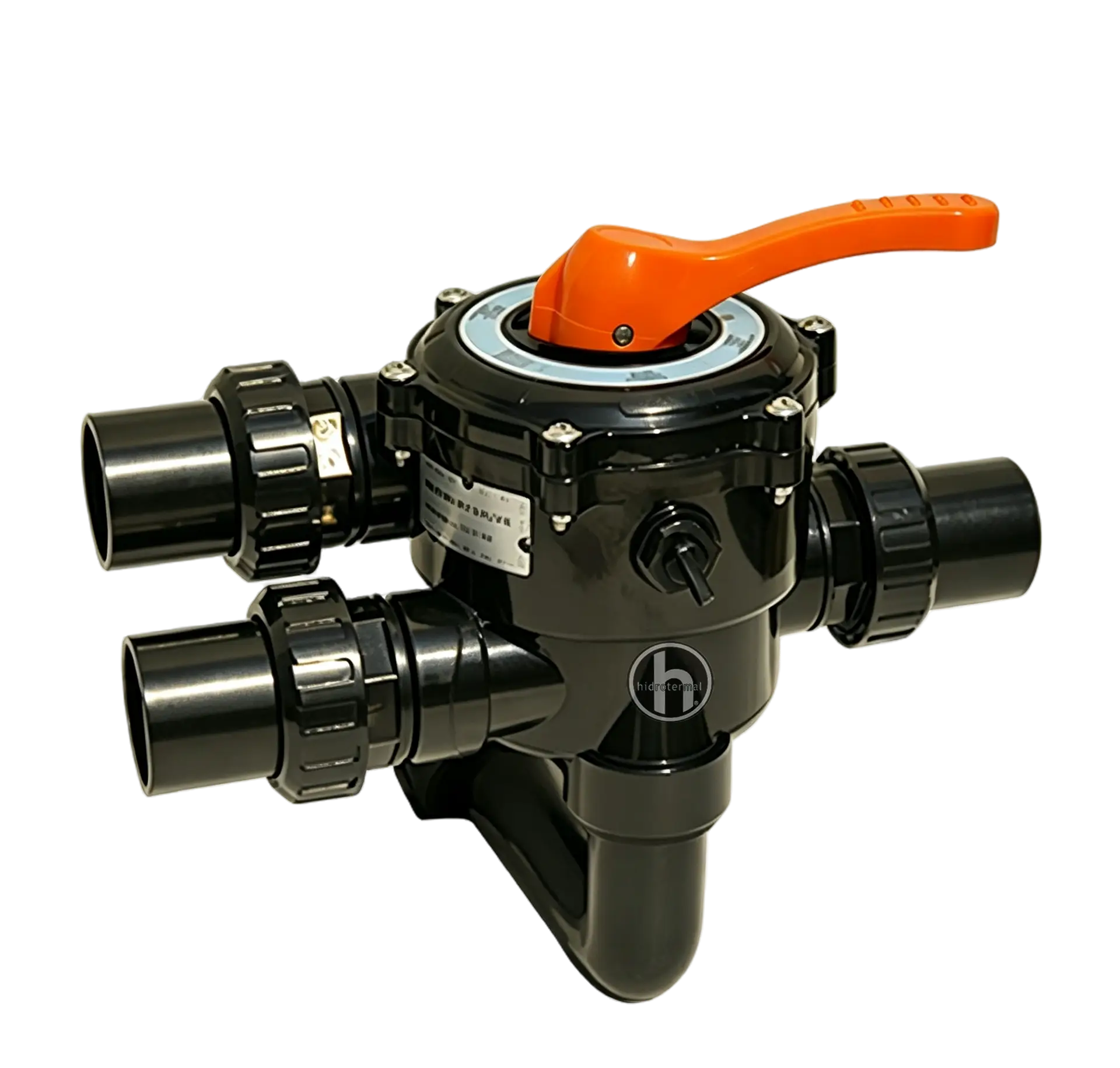

Six-way multiport valve.
-

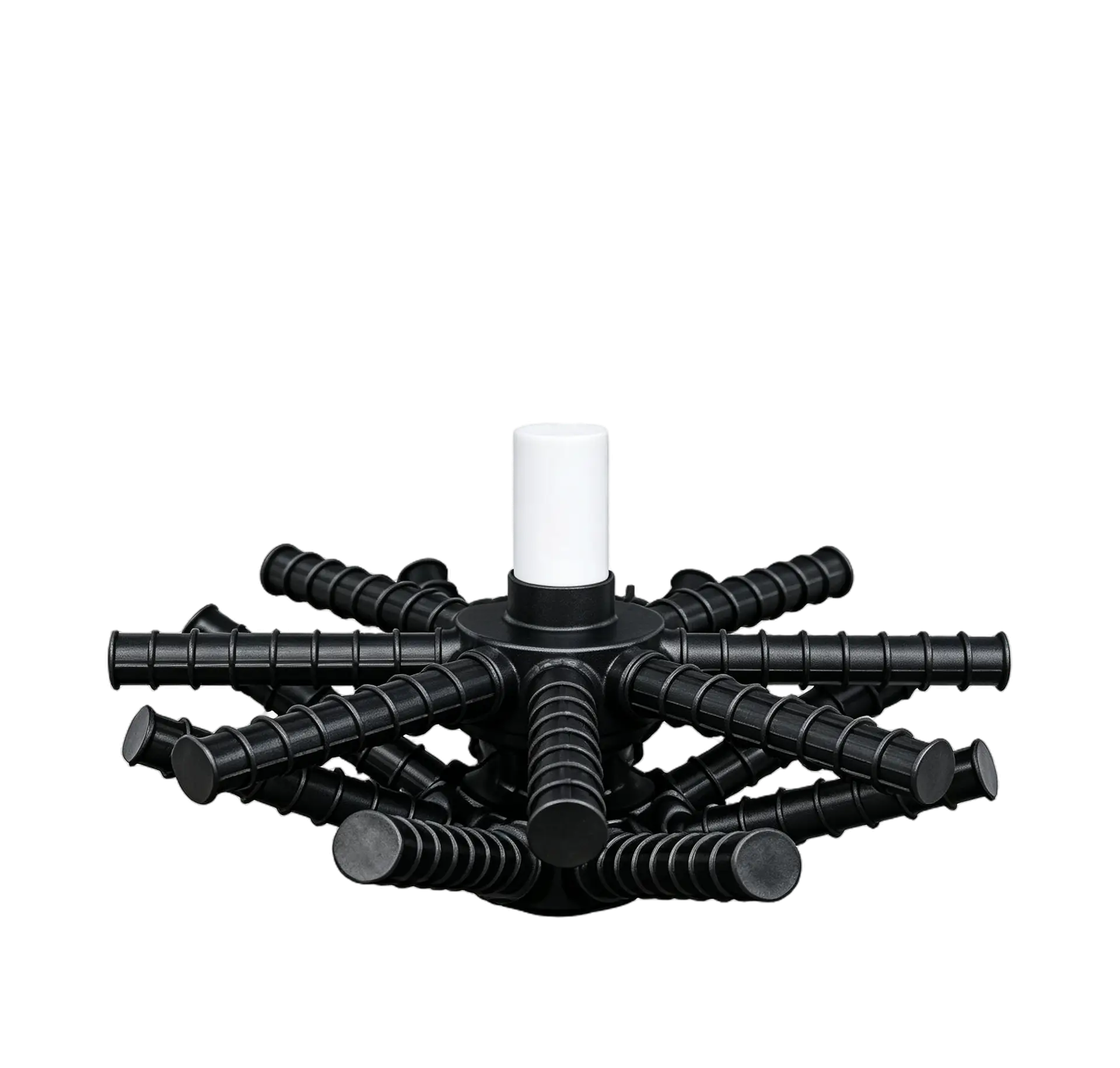

Easy maintenance with a specialized drainage system.
Condiciones de trabajo
- Max. Operating Water Temperature: ≤50°C/122ºF
- Max. Working Pressure: 40psi/2.8bar
accesorios
