HT-BFV
Blow-Molded HDPE Sand Filter

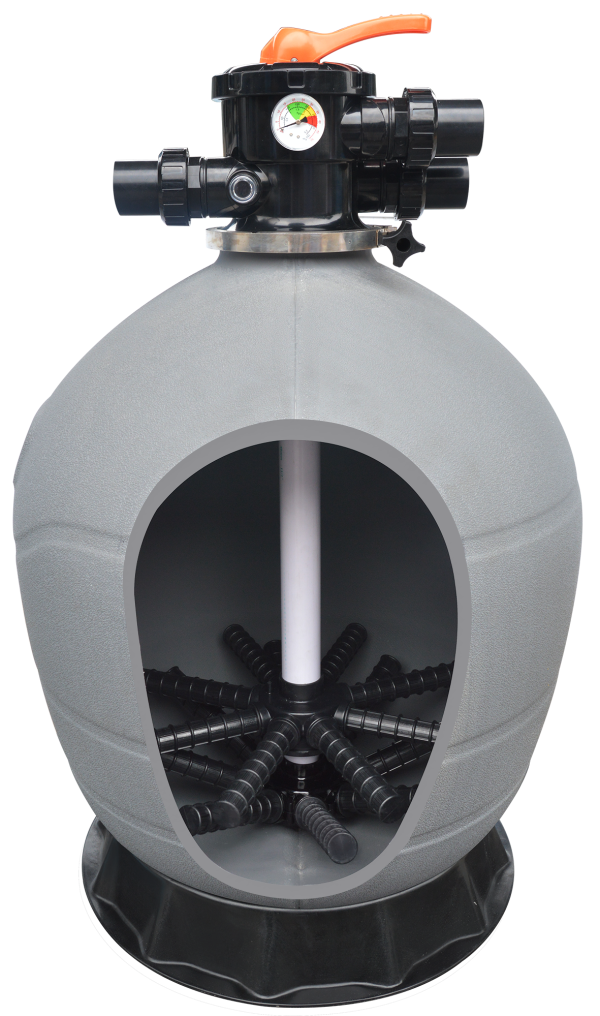

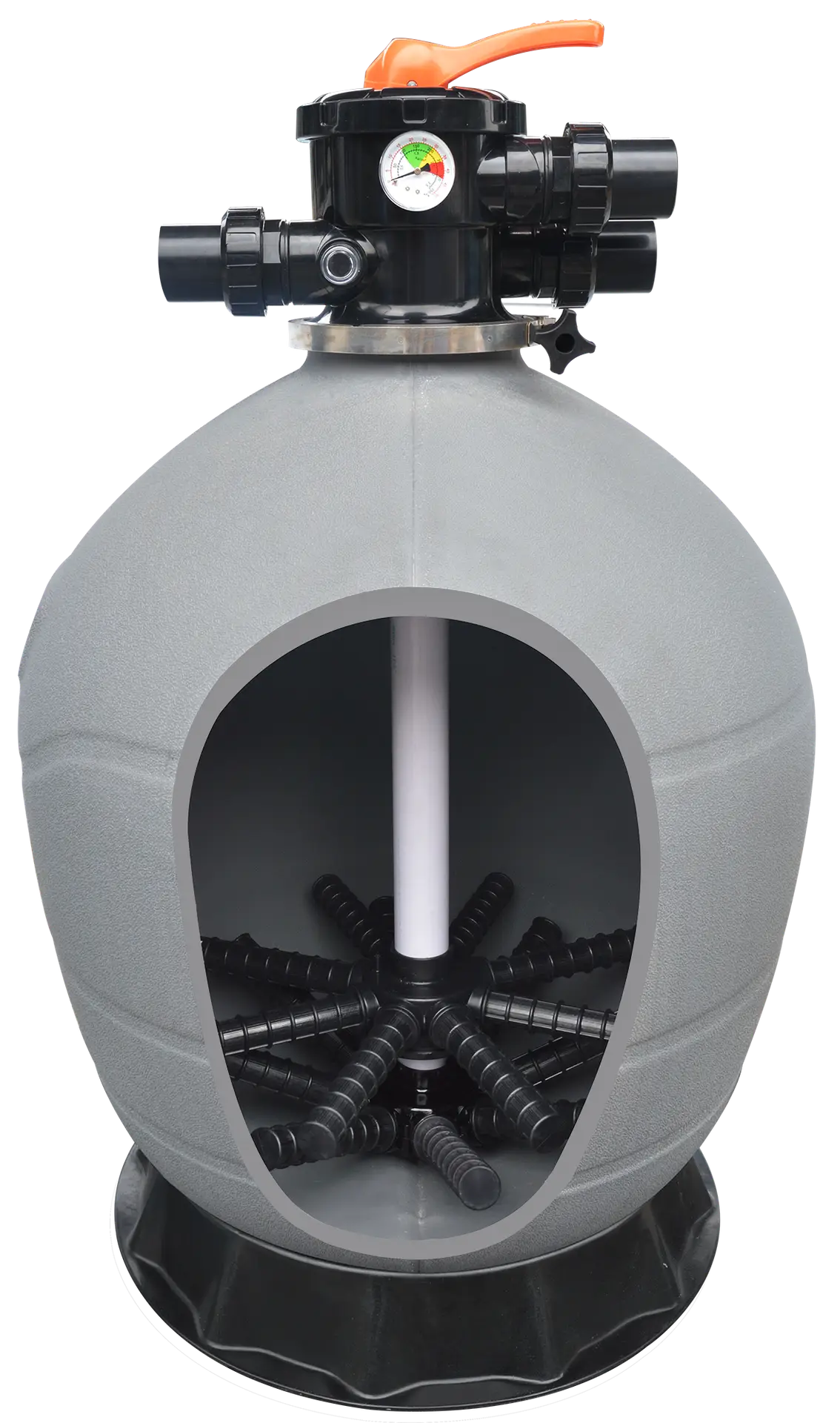

Built for pools, spas, fountains, and waterscapes that demand reliable filtration without the upkeep hassle. The HT-BFV series uses a durable, anti-corrosive HDPE tank rated for all weather conditions, paired with a six-way multiport valve and a specialized drainage system for easy maintenance. Available in four sizes (0.14–0.32 m² filter area, 7–16 m³/h rated flow) to match a range of installation needs, with a compact footprint that saves space without sacrificing performance.
| MODEL | FILTER AREA | RATED FLOW | SAND WEIGHT (KG) | Tank Volume (m3) | Valve Volume (m3) | Dimensions (mm) | Connection Size | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M3/H | GPM | A | B | C | D | M | ||||||
| HT-BFV17 | 0.14 | 7 | 30.82 | 50 | 0.11 | 0.02 | 767 | 635 | 579 | 425 | 195 | 1.5" - 48.5/50mm |
| HT-BFV20 | 0.19 | 9.5 | 41.83 | 90 | 0.16 | 0.02 | 890 | 758 | 702 | 500 | 236 | 1.5" - 48.5/50mm |
| HT-BFV24 | 0.27 | 13.5 | 59.44 | 140 | 0.26 | 0.02 | 983 | 850 | 795 | 600 | 285 | 1.5" - 48.5/50mm |
| HT-BFV26 | 0.32 | 16 | 70.45 | 170 | 0.34 | 0.02 | 1028 | 895 | 839 | 650 | 319 | 1.5" - 48.5/50mm |
caracteristicas
-
Versatile for pools, spas, fountains, waterscapes, and aquariums.
-
Made with anti-corrosive, environmentally friendly HDPE.
-
Durable thermal plastic tank for all weather conditions.
-
Compact, space-saving design.
-

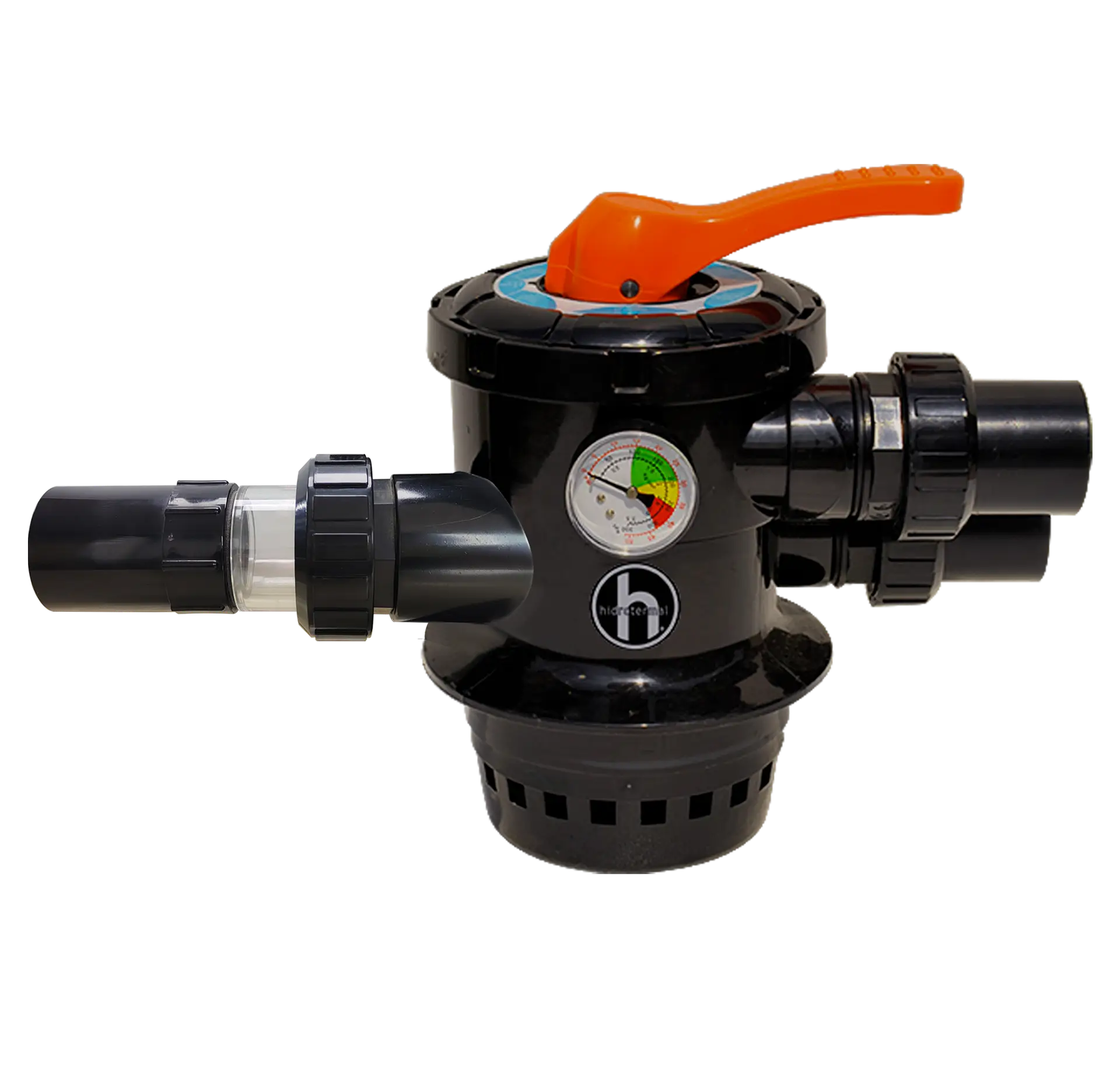

Six-way multiport valve.
-
Easy maintenance with a specialized drainage system.
