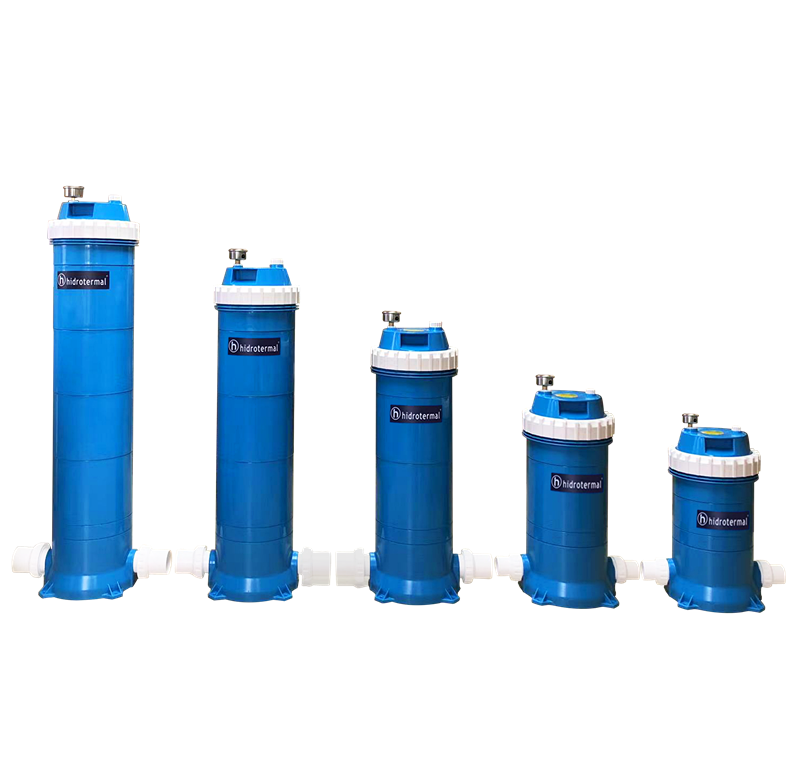

HT-CTF25/50/75/100/150
Fiberglass Sand Filters
Hidrotermal’s bobbin-wound fiberglass filters are one of the most popular in the industry, offering crystal clear waters and outstanding performance. Safe for Users and the Environment, UV-Resistant Finish & AntiCorrosive our filters work well in direct sunlight for years of prolonged operation.
| MODEL | FILTER AREA | RATED FLOW | Pump Range | Dimensions (mm) | Valve Connections | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| M3/H | GPM | W | HP | D | H | D | H | |||
| HT-CTF25 | 2.3m2 | 5.5 | 22.22 | 250-370 | 0.35-0.80 | 225 | 387 | 183 | 184.5 | 1.5" 48.5/50mm |
| HT-CTF50 | 4.7m2 | 11.4 | 50.2 | 550-750 | 0.75-1.0 | 225 | 567 | 183 | 364.5 | 1.5" 48.5/50mm |
| HT-CTF75 | 7.0m2 | 17.0 | 74.85 | 750-1100 | 1.0-1.50 | 225 | 747 | 183 | 544.5 | 2" 60.3/63mm |
| HT-CTF100 | 9.4m2 | 22.9 | 100.83 | 1100-1500 | 1.50-2.0 | 225 | 927 | 183 | 724.5 | 2" 60.3/63mm |
| HT-CTF150 | 14.0m2 | 33.4 | 147.06 | 1500-2200 | 2.0-3.0 | 225 | 1107 | 183 | 904.5 | 2" 60.3/63mm |
caracteristicas
- Captures fine particles.
- Low maintenance, no backwashing.
- Durable, corrosion-resistant.
- Quick cartridge replacement.
Condiciones de trabajo
- Max. Operating Water Temperature: ≤43°C/109ºF
- Max. Working Pressure: 50psi/3.5bar
accesorios
Top mounted Six-Way Valve
Standard Plastic Clamp or Optional Stainless Steel Clamp
Distributor
