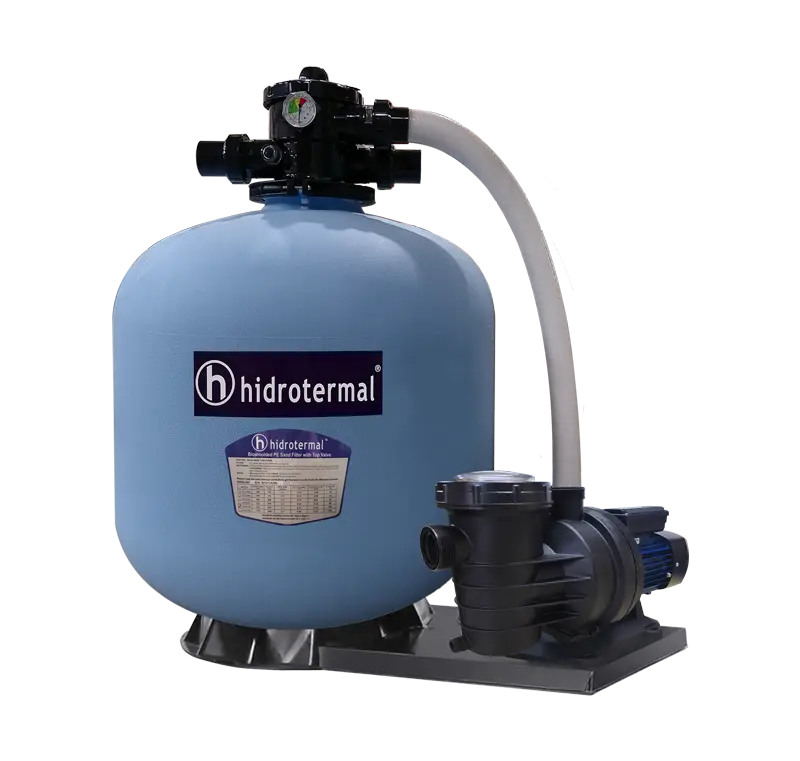

HT-PC
Fiberglass Sand Filters
Hidrotermal’s bobbin-wound fiberglass filters are one of the most popular in the industry, offering crystal clear waters and outstanding performance. Safe for Users and the Environment, UV-Resistant Finish & AntiCorrosive our filters work well in direct sunlight for years of prolonged operation.

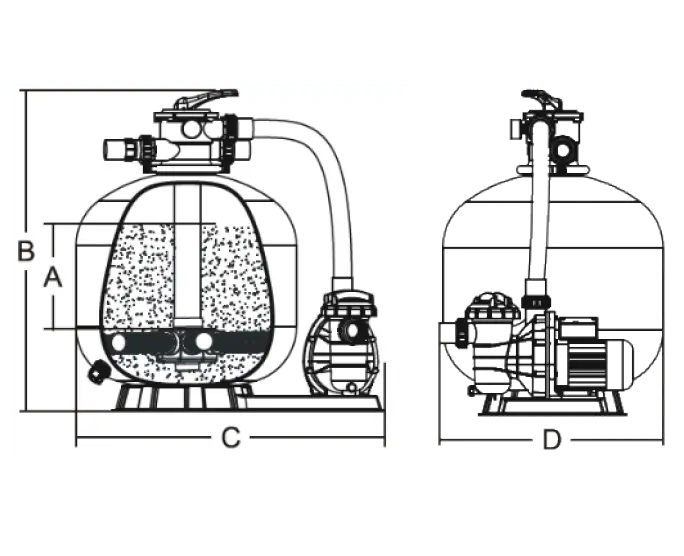

| MODEL | Filter Model | Pump Model | FILTER AREA | RATED FLOW | SAND WEIGHT (KG) | Dimensions (mm) | Connection Size | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M3/H | GPM | A | B | C | D | ||||||
| HT-PC350-6W | HT-PG350 | Hidro-MPT035 | 0.10m2 | 4.5 | 19.81 | 24kg | 150 | 750 | 570 | 350 | 1.5" 48.5/50mm |
| HT-PC400-6W | HT-PG400 | Hidro-BPS050 | 0.13m2 | 6.5 | 28.62 | 34kg | 175 | 770 | 570 | 410 | 1.5" 48.5/50mm |
| HT-PC450-6W | HT-PG450 | Hidro-BPS050 | 0.16m2 | 8 | 35.22 | 50kg | 210 | 830 | 770 | 450 | 1.5" 48.5/50mm |
| HT-PC600-6W | HT-PG500 | Hidro-BPS075 | 0.23m2 | 11.5 | 50.63 | 80kg | 235 | 870 | 770 | 535 | 1.5" 48.5/50mm |
| HT-PC650-6W | HT-PG650 | Hidro-BPS100 | 0.32m2 | 16 | 70.45 | 160kg | 300 | 970 | 770 | 635 | 1.5" 48.5/50mm |
caracteristicas
-
Reinforced, corrosion-proof fiberglass; weather-resistant.
-
Six-position valve for versatile filtration.
-
360-degree clamp or bolt style for easy installation.
-
Compact, space-saving design.
-
Easy maintenance with drainage system, pressure gauge, and air relief bolt.
Condiciones de trabajo
- Max. Operating Water Temperature: ≤43°C/109ºF
- Max. Working Pressure: 36psi/2.5bar
accesorios
Top mounted Six-Way Valve
Standard Plastic Clamp or Optional Stainless Steel Clamp
Distributor
