HT-S-1.5″/2″
Fiberglass Sand Filters
Hidrotermal’s bobbin-wound fiberglass filters are one of the most popular in the industry, offering crystal clear waters and outstanding performance. Safe for Users and the Environment, UV-Resistant Finish & AntiCorrosive our filters work well in direct sunlight for years of prolonged operation.
| MODEL | Description | RATED FLOW | Backwash Flow Rate | Base Connection | Center Pipe：1 | Dimensions (mm) | Valve connections Inlet/Outlet/Drain | |||
|---|---|---|---|---|---|---|---|---|---|---|
| M3/H | GPM | L | W | H | ||||||
| HT-S-1.5" | Side mounted six-way valve | 17 | 75 | 17m3/h | - | - | 380 | 230 | 330 | 1.5" 48.5/50 |
| HT-S-2" | Side mounted six-way valve | 27 | 118 | 27m3/h | - | - | 450 | 260 | 550 | 2" 60.3/63 |
caracteristicas
- Filter (Normal filtration and vacuuming)
- Backwash (Reverse Flow Cleanse)
- Rinse (Valve flush)
- Waste (By passes filter; lower water level, vacuum)
- Recirculate (By passes filter; Water circulation)
- Close
Condiciones de trabajo
- Pressure gauge makes it easier to examine and maintain.

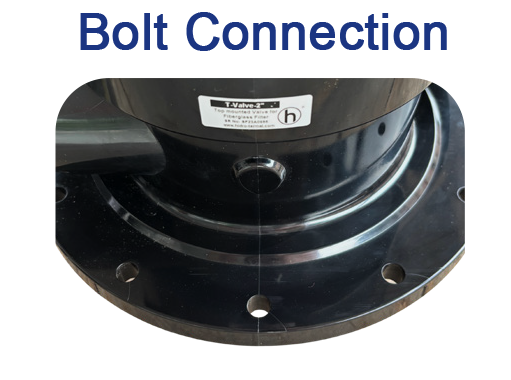

- 360 degree clamp and bolt type for easy installation
- Optional stainless or abs clamp
- Engineered for optimal water circulation, ensuring consistent filtration and improved water clarity.
accesorios

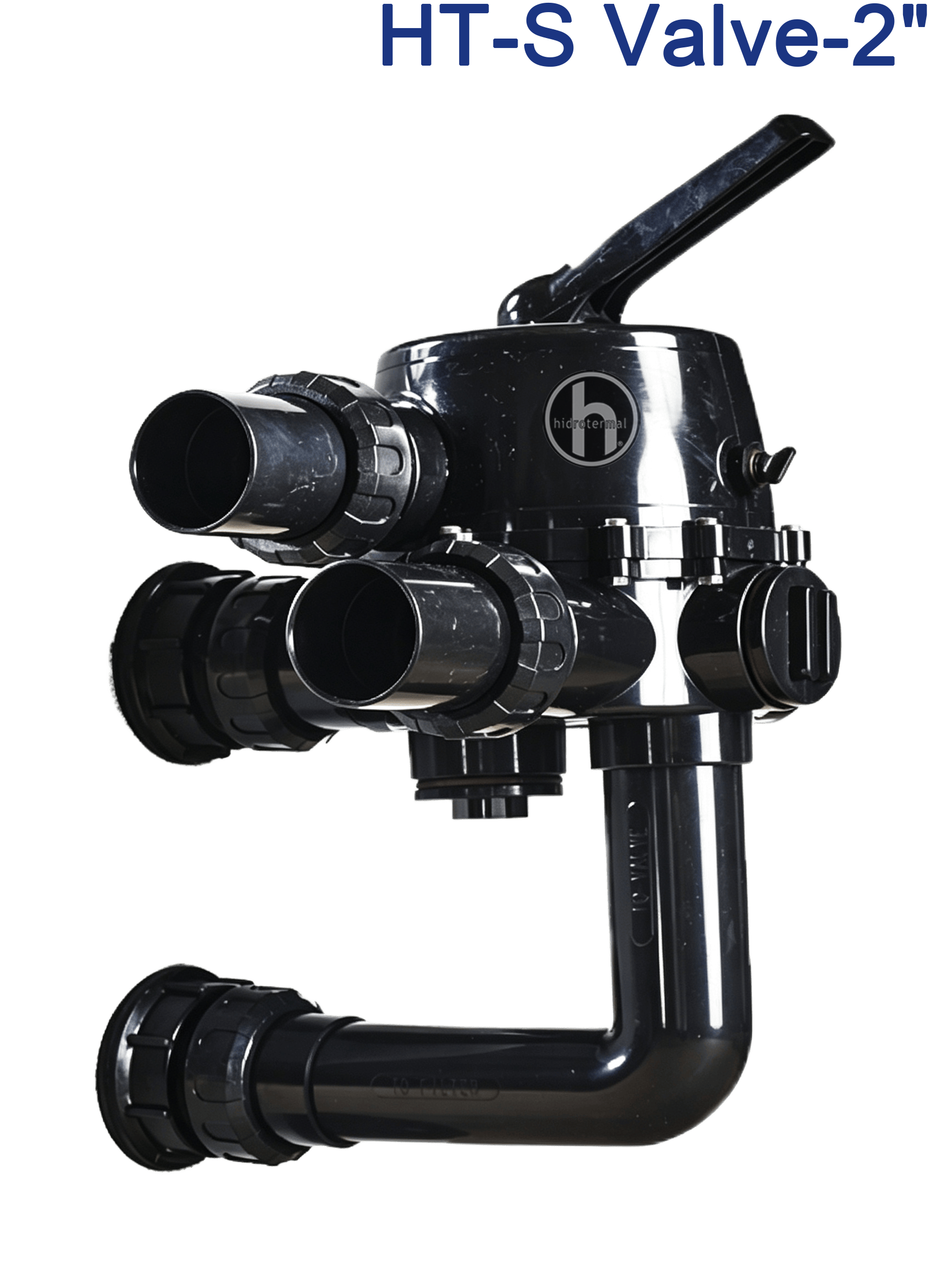

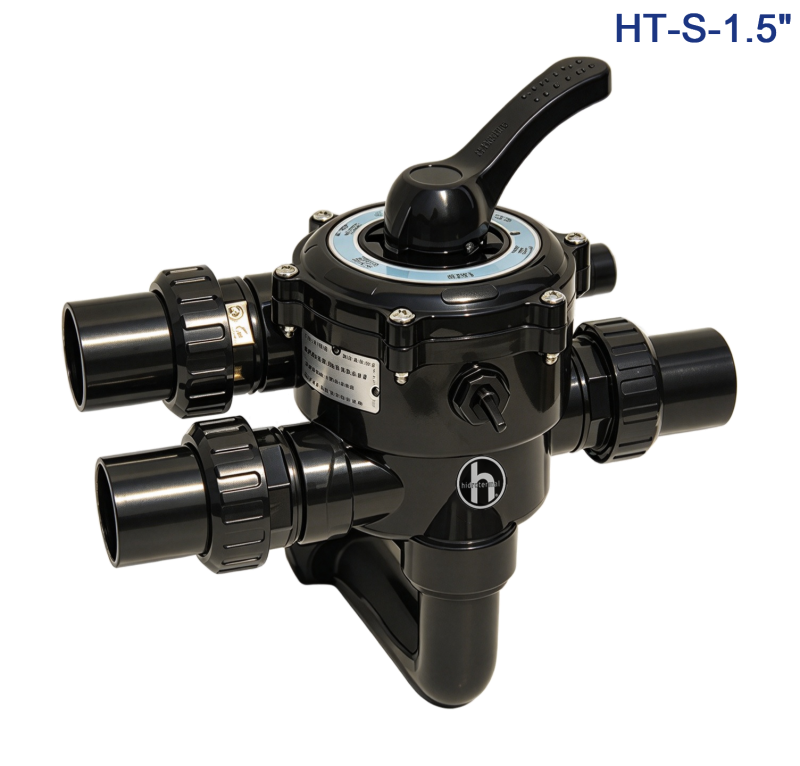

Top mounted Six-Way Valve
Standard Plastic Clamp or Optional Stainless Steel Clamp
Distributor
