HT-V

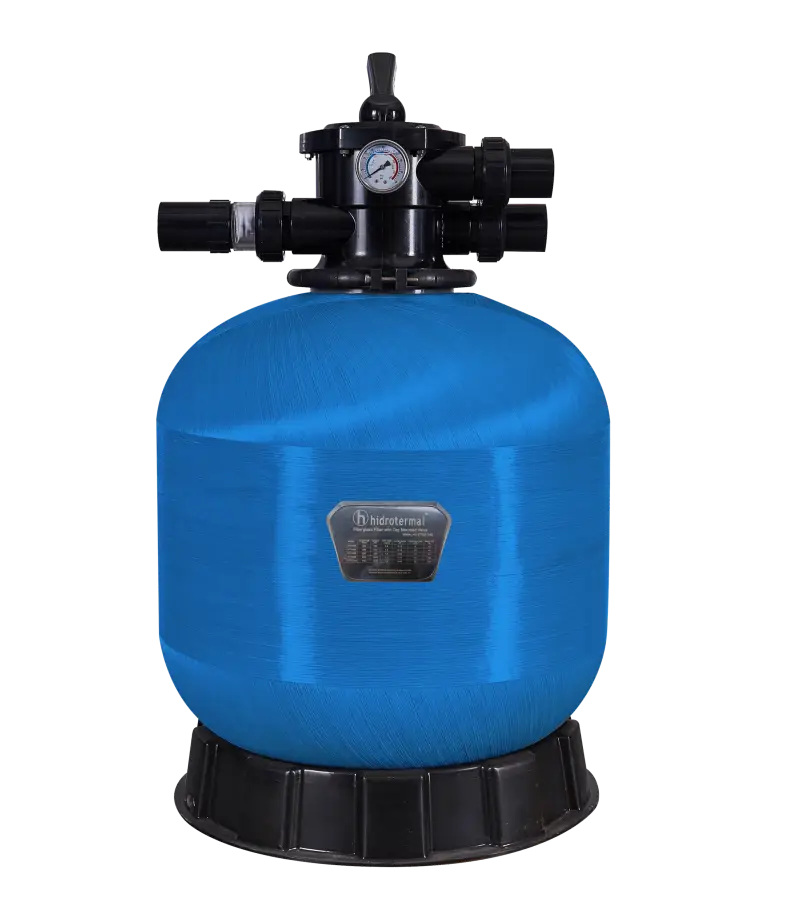

Fiberglass Sand Filters
Hidrotermal’s bobbin-wound fiberglass filters are one of the most popular in the industry, offering crystal clear waters and outstanding performance. Safe for Users and the Environment, UV-Resistant Finish & AntiCorrosive our filters work well in direct sunlight for years of prolonged operation.
| MODEL | FILTER AREA | RATED FLOW | SAND WEIGHT (KG) | Tank Volume (m3) | Dimensions (mm) | Connection Size | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| M3/H | GPM | A | B | C | D | |||||
| HT-V400 | 0.13m2 | 8.00 | 35.22 | 35kg | 0.09m3 | 720 | 575 | 520 | 400 | 1.5" - 48.5/50mm |
| HT-V450 | 0.16m2 | 10.00 | 44.03 | 45kg | 0.15m3 | 770 | 655 | 600 | 450 | 1.5" - 48.5/50mm |
| HT-V525 | 0.22m2 | 12.00 | 52.84 | 85kg | 0.20m3 | 840 | 730 | 675 | 525 | 1.5" - 48.5/50mm |
| HT-V625 | 0.32m2 | 16.00 | 70.45 | 150kg | 0.32m3 | 960 | 820 | 760 | 625 | 1.5" - 48.5/50mm |
| HT-V700 | 0.40m2 | 20.00 | 88.06 | 210kg | 0.42m3 | 1040 | 915 | 855 | 700 | 1.5" - 48.5/50mm |
| HT-V700B | 0.40m2 | 21.00 | 92.46 | 215kg | 0.42m3 | 1080 | 955 | 875 | 700 | 2" 60.3/63mm |
| HT-V750 | 0.45m2 | 23.00 | 101.27 | 300kg | 0.44m3 | 1110 | 976 | 893 | 750 | 2" 60.3/63mm |
| HT-V800 | 0.50m2 | 25.00 | 110.08 | 355kg | 0.68m3 | 1210 | 1080 | 1000 | 800 | 2" 60.3/63mm |
| HT-V900 | 0.64m3 | 31.00 | 136.49 | 470kg | 0.95m3 | 1270 | 1123 | 1040 | 900 | 2" 60.3/63mm |
| HT-V1000 | 0.79m2 | 36.00 | 158.51 | 620kg | 1.29m3 | 1360 | 1276 | 1200 | 1000 | 2" 60.3/63mm |
| HT-V1100 | 0.96m2 | 42.00 | 184.93 | 800kg | 1.40m3 | 1400 | 1290 | 1210 | 1100 | 2" 60.3/63mm |
| HT-V1200 | 1.13m2 | 45.00 | 198.14 | 900kg | 2.26m3 | 1420 | 1290 | 1210 | 1200 | 2" 60.3/63mm |
| HT-V1400 | 1.54m2 | 56.00 | 246.57 | 1350kg | 3.50m3 | 1750 | 1340 | 1260 | 1400 | 2" 60.3/63mm |
caracteristicas
-
Reinforced, corrosion-proof fiberglass; weather-resistant.
-
Six-position valve for versatile filtration.
-
360-degree clamp or bolt style for easy installation.
-
Compact, space-saving design.
-
Easy maintenance with drainage system, pressure gauge, and air relief bolt.
Condiciones de trabajo
- Max. Operating Water Temperature: ≤43°C/109ºF
- Max. Working Pressure: 36psi/2.5bar
accesorios

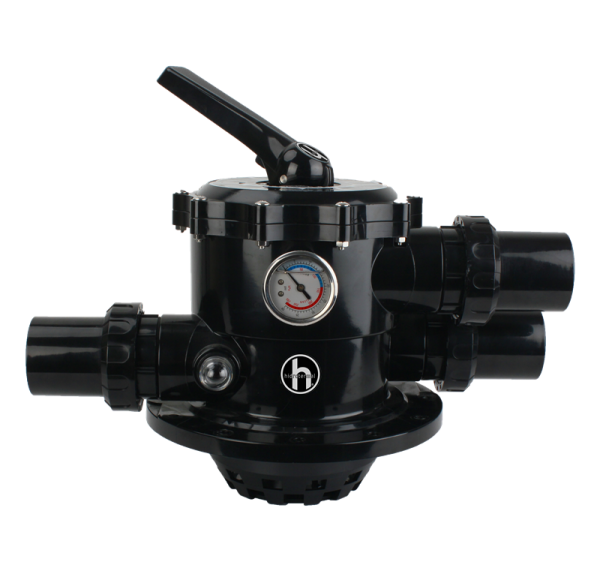

Top mounted Six-Way Valve
Standard Plastic Clamp or Optional Stainless Steel Clamp
Distributor
